75908 - SWITCH
SKU# 75908

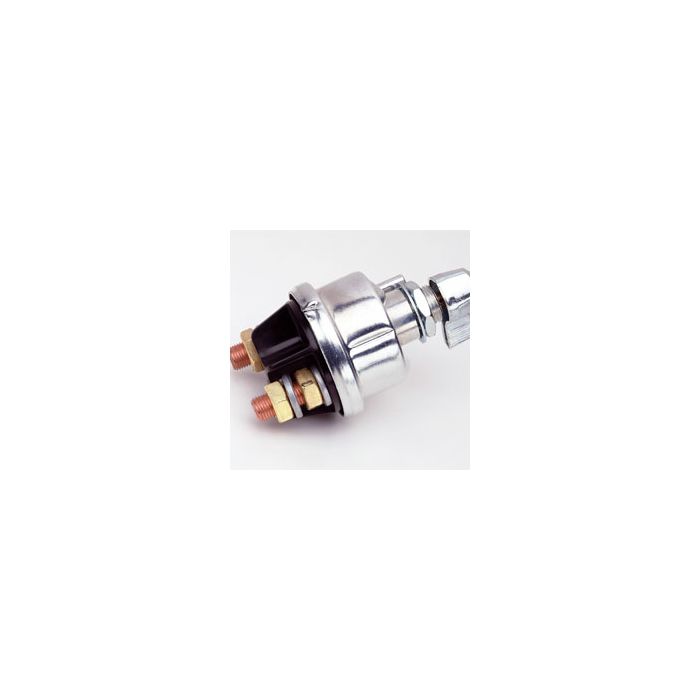

75908 Cole Hersee, Littelfuse high current disconnect switch, 2000A intermittent (30 Sec on, 3 Min off), 300A continuous, 6-36VDC, Two positions: Off-On. Disconnects battery circuit only. Mounting stem: 3/4"" -16 thread. Fits panels up to 1/4"" (6.4mm) thick. Terminals: Two 1/2"" -20 copper studs. Case: Plated steel. Sealing: sealed between shaft and mounting stem; case and terminal insulator.
| Manufacturer | Cole Hersee |
|---|---|
| Product Type | SWITCH |
| Vendor Item | 75908 |
| Vendor Short Name | COLHER |
| Specifications | Click here for PDF Specifications |
| RoHS Compliant |
|
