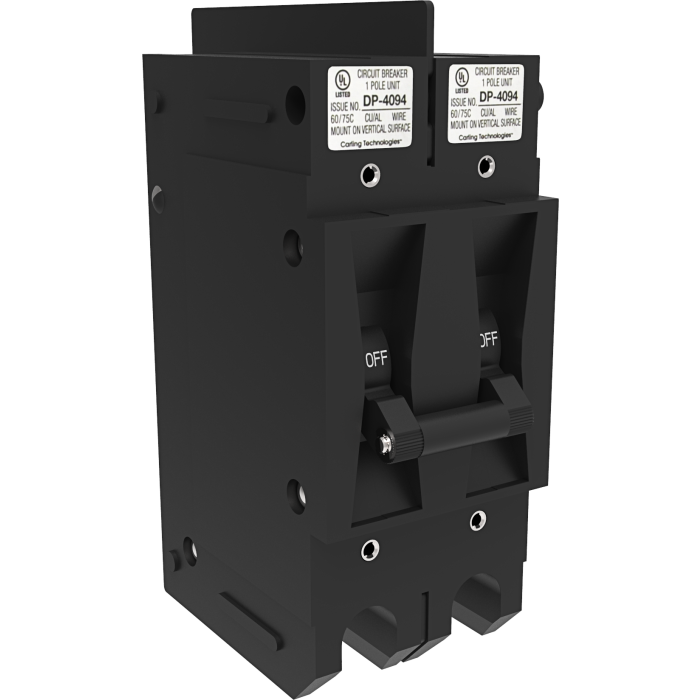

EA2-B0-16-630-1DA-BC - CIRCUIT BREAKER
SKU# EA2-B0-16-630-1DA-BC
$49.75
Product Type:Â CIRCUIT BREAKER
Vendor Item:Â EA2-B0-16-630-1DA-BC
Manufacturer:Â Carling Technologies, Inc.
RoHS Compliant
- Buy 10 for $45.00 each
EA2-B0-16-630-1DA-BC, Carling Technologies' E-Series hydraulic magnetic circuit breakers are ideally suited for higher current and voltage applications. One handle per pole. Two poles. Series trip (current) circuit without auxiliary switch. DC Long. 30 amperes. Max rating of 50 A. 10-32 Stud (all terminals). Black actuator, white legend. 6-32 mounting inserts. 125 VDC, 120 A maximum application rating. UL 489 Listed & CSA Certified.
| Manufacturer | Carling Technologies, Inc. |
|---|---|
| Product Type | CIRCUIT BREAKER |
| Vendor Item | EA2-B0-16-630-1DA-BC |
| Specifications | Click here for PDF Specifications |
| RoHS Compliant |
|
