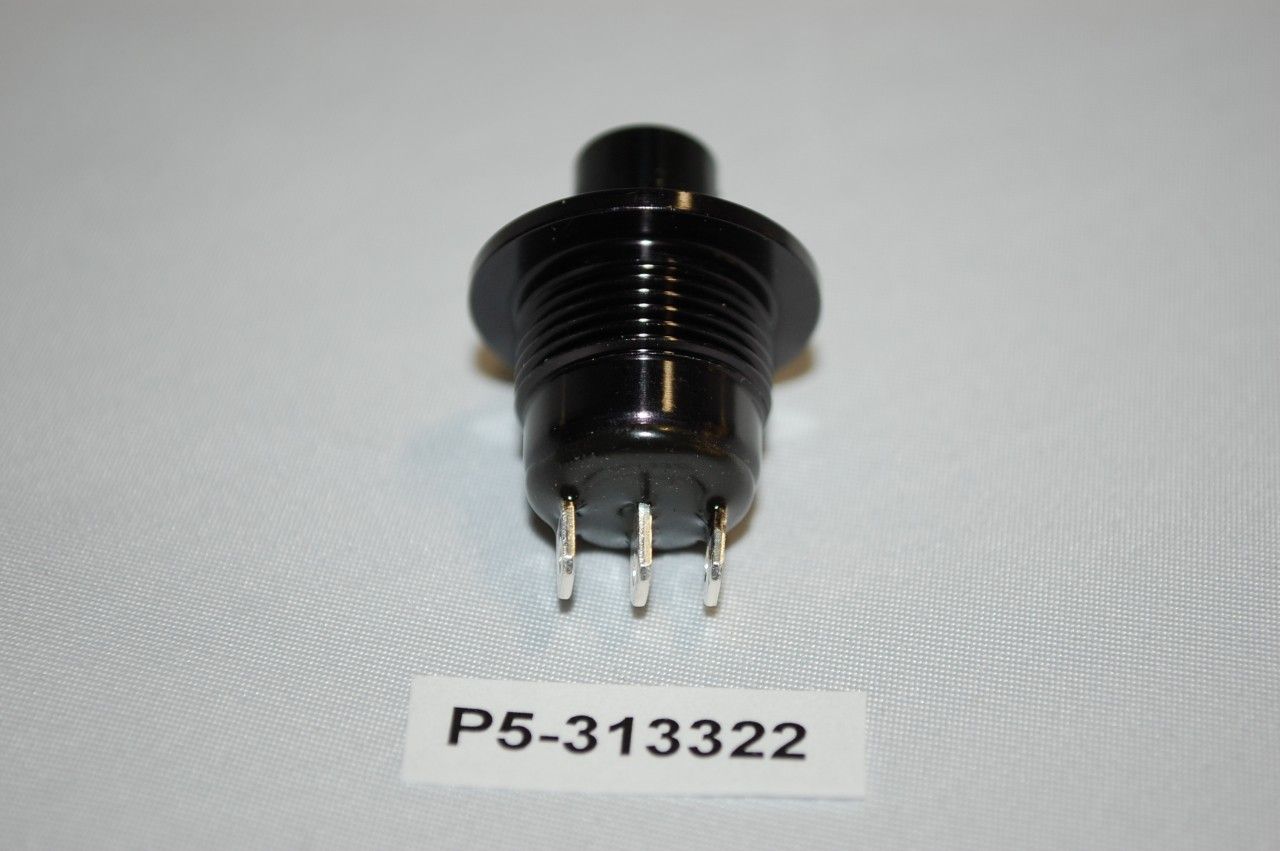

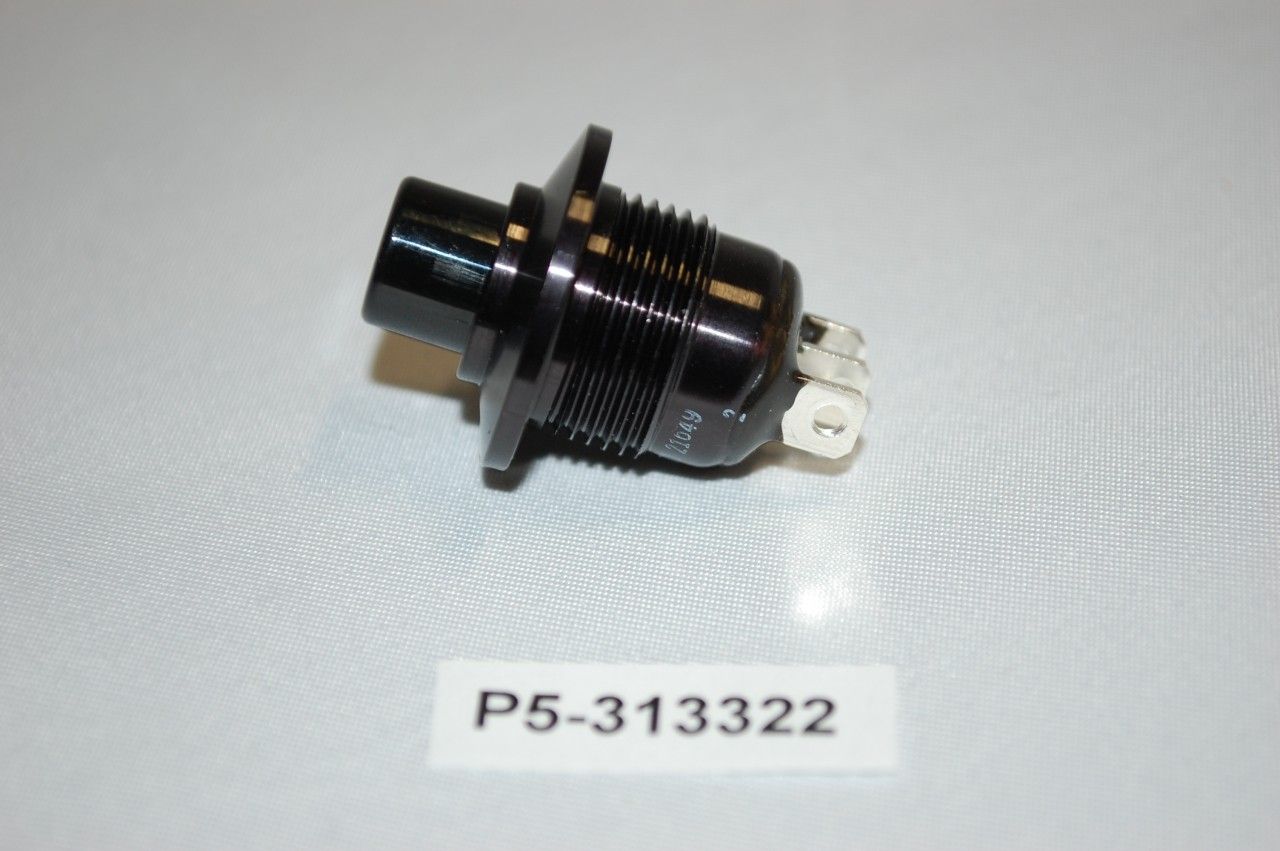

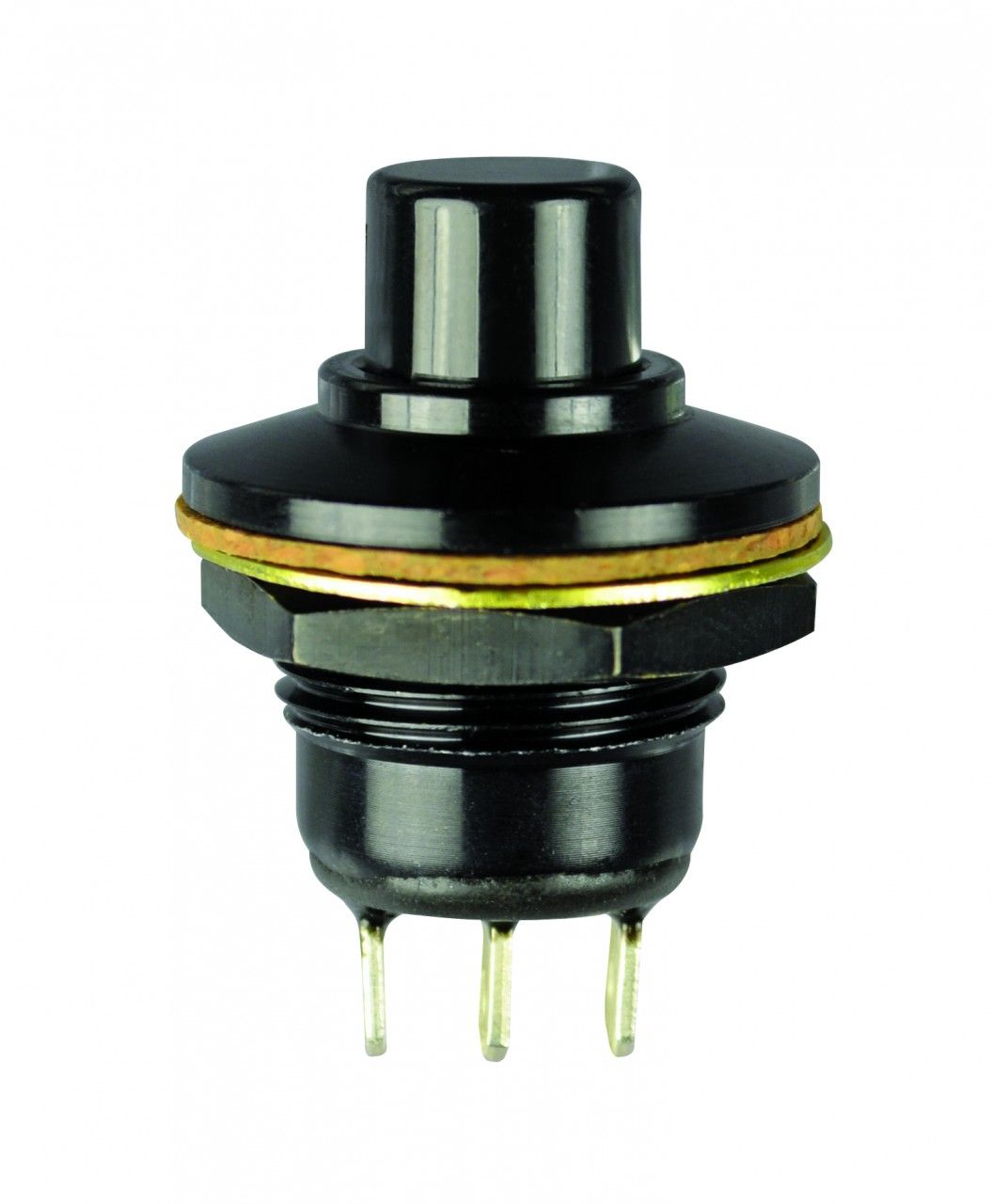

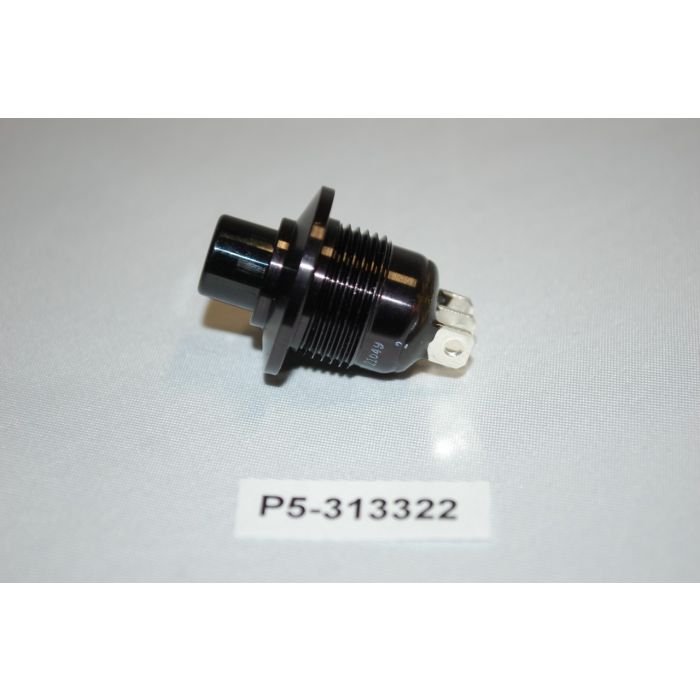

P5-313322 - SWITCH

P5-313322 Otto Switch Sealed alternate action watertight momentary pushbutton switch. Rugged construction-SPDT, black case and button, solder terminals. The P5 requires less behind the panel space than many other pushbutton switches. Push and the P5 switch turns “on.” Push again and the P5 switch turns “off.” Positive tactile feedback is featured so the operator is clearly aware the switch mode has been executed. The button returns to the original position after each actuation. To guard against front panel splash and dirt, the P5 series is sealed at the button with OTTO’s patented “rolling sleeve” principle. The terminals are sealed with epoxy, providing a seal against flux during wiring and behind panel dirt and moisture. The combination of sealing provides smooth operation over a wide temperature range.
