V1D1B60B-00000-000 - SWITCH
SKU# V1D1B60B-00000-000
$4.53
Product Type: SWITCH
Vendor Item: V1D1B60B-00000-000
Manufacturer: Carling Technologies, Inc.
RoHS Compliant
- Buy 10 for $3.98 each
- Buy 25 for $3.50 each
- Buy 50 for $3.08 each
- Buy 100 for $2.78 each

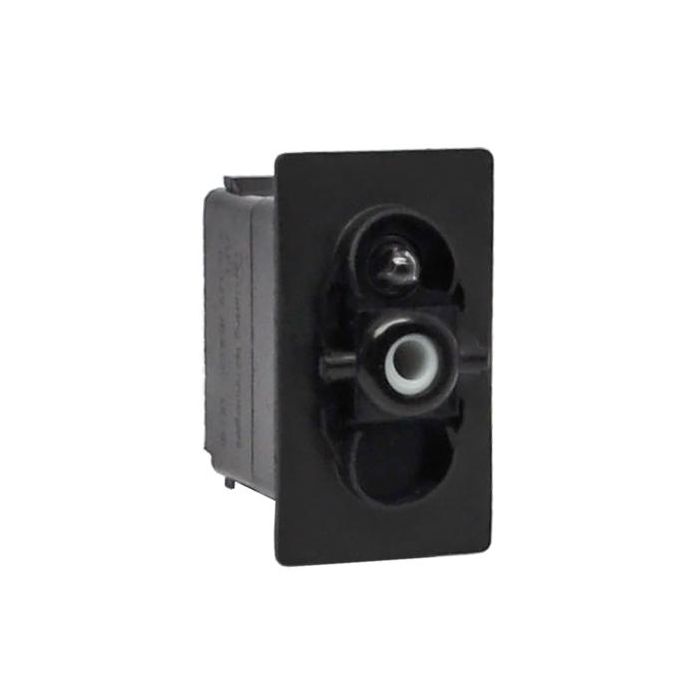

V1D1B60B-00000-000, Carling Technologies, V-series Contura style switch, single pole, On-None-Off, rated 20A @ 12V, 8 terminal base style - .250 quick connect tab termination with no barriers, sealed, 12V incandescent lamp, black bracket, no lens, no actuator. The V-Series switches are well known for their cutting edge design, high quality, maximum performance and unmatched reliability. These snap-in rocker switches offer countless options for ratings, circuits, colors, illuminations and symbols. These single or double pole switches feature removable actuators in a choice of actuator styles and colors, which may be purchased and stocked separately. An optional plug-in terminal connector enables pre-wiring of wire harness. Certified to IP66, the V-Series Contura switches offer complete protection against dust, prolonged spray and submersion under pressure and are recognized to UL1500 - Ignition Protection for Marine Products. These switches are vibration, shock, thermoshock, moisture and salt spray resistant with operating temperature ranging from -40 C to 85 C. The Contura II & III styles feature square and bar lens options and are constructed of thermoplastic polycarbonate with hard nylon or “soft touch” elastomer overlay. The Contura II features 2 rows of raised bumps and the Contura III features 3 rows of ridged finger traction on top and bottom of the rocker.
Manufacturer | Carling Technologies, Inc. |
---|---|
Product Type | SWITCH |
Vendor Item | V1D1B60B-00000-000 |
Vendor Short Name | CARL |
Specifications | Click here for PDF Specifications |
RoHS Compliant | ![]() |
