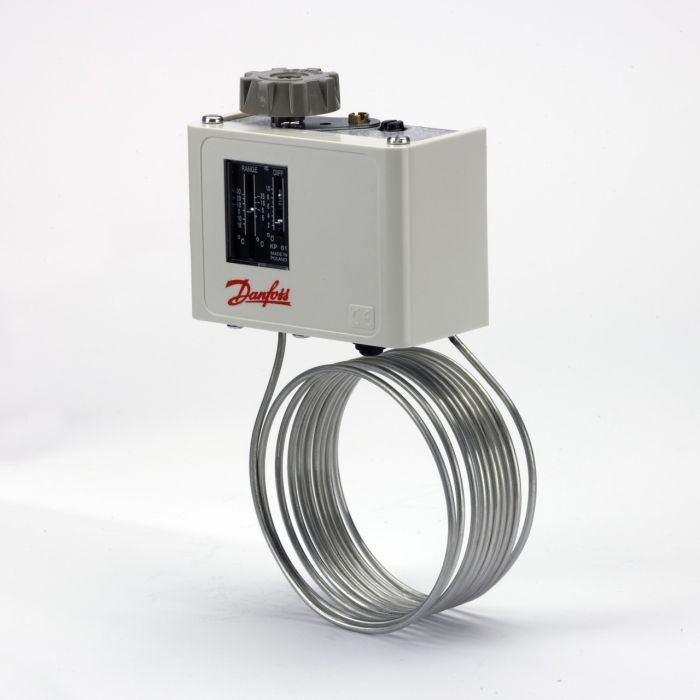

060L110266 - THERMOSTAT
SKU# 060L110266
Danfoss 060L110266, 060L110266 Danfoss KP61 series. Ambient temperature:–40 - +65 C (+80 C for max. 2 hours). Switch: Single-pole, double-throw (SPDT) changeover switch. Contact load, AC:AC1: 16 A, 400 V AC3: 16 A, 400 V AC15: 10 A, 400 V Max. starting current (L.R.): 112 A, 400 V Contact load, DC: DC13: 12 W, 220 V control current Cable connection: Cable entry for cables 6 - 14 mm dia. A Pg 13.5 screwed cable entry can be used for 6 - 14 mm dia. cables. With 8 - 16 mm cables a standard Pg 16 screwed cable entry can be used. Enclosure: IP 30 to IEC 529, when unit is mounted on a flat surface or a fixed bracket where all unused holes are covered.
| Manufacturer | Danfoss, Inc. |
|---|---|
| Product Type | THERMOSTAT |
| Vendor Item | 060L110266 |
| Vendor Short Name | DANFOS |
| Specifications | Click here for PDF Specifications |
| RoHS Compliant |
|
